1574.00

Solid, straight pull handle, ø19 mm. Designed by AART Designers to match lever handle no. 1074

• Available in satin stainless steel (AISI 304).
• Supplied singly, thread or pin side, without fixing sets. Pin side supplied with grub screw, thread side supplied with M8 thread. Fixing sets should be ordered separately.

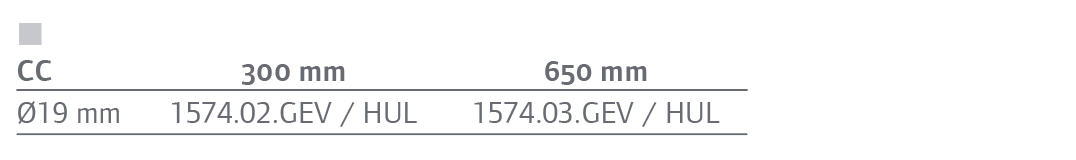

• Specify fixing centres and separate fixing sets when ordering.

Fixing sets

• 53002/MX M8 screw, bolt through fixing.
• 53050T Face fixing.
• 74071/GX M8 screw, cross-slot.
• 53040/SX Assembly bolt M8.
• 60040 Fitting for installation on glass doors.
• 5301X/2 Washers ø28×2 mm.
